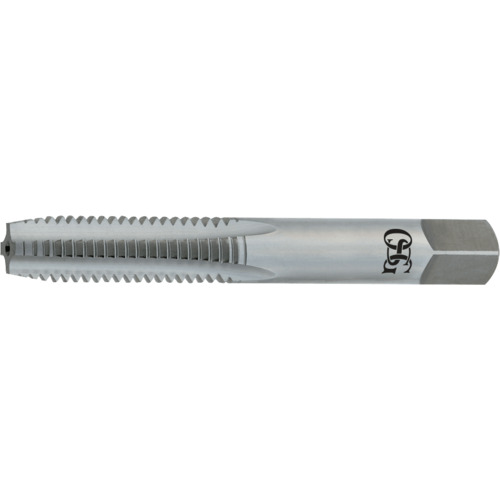

2-56 3FL H2 High Speed Steel Straight Fl Tap - Bright
Straight Flute Tap; #2 - 56 ; 1-7/8″ OAL ; 3 FL ; HSS ; Uncoated ; H2 ; Series 126
| Thread Diameter Size (TDZ) | #2 | Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 56 | Tool Type | Hand Tap |
| Thread Standard | NC | Chamfer | 3.5P-4.5P |
| Overall Length (OAL) | 1-7/8″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 9/16″ | Flute Type | Straight |
| Usable Length (LU) | 0.696″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 126 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | #2 - 56 |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.35000
Package Height
.25000
Package Weight
0.01
