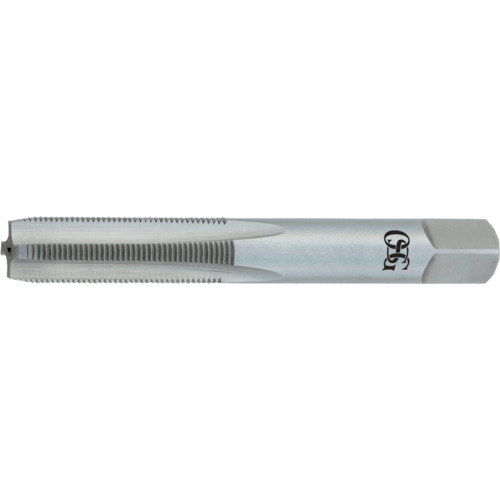

1/2-28 4Fl H3 HSS Straight Flute Plug Tap-Bright
Straight Flute Tap; 1/2″ - 28 ; 3-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 101N
| Thread Diameter Size (TDZ) | 1/2″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 28 | Chamfer | 4P-4.5P |
| Thread Standard | UNEF | Coating | Uncoated |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 1.811″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 101N |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 1/2″ - 28 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.095
