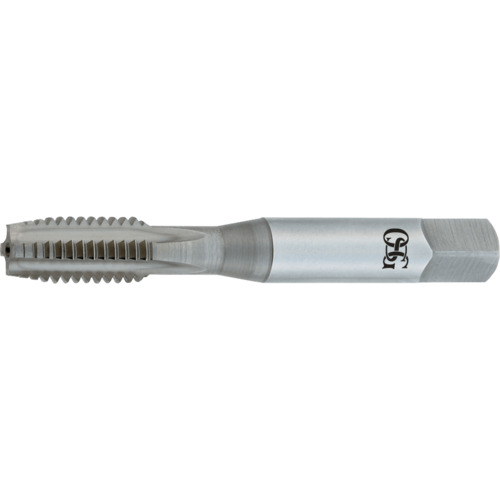

M12 1.75 Dia. - D6-4 FL - HSSE - Nitride - Bottoming - Straight Flute Tap
Straight Flute Tap; M12 × 1.75 mm ; 3-3/8″ OAL ; 4 FL ; HSSCo ; Nitride ; D6 ; Series 241
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | D6 |
| Thread Pitch (TP) | 1.75 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 3-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | End Shape | Chamfer |
| Usable Length (LU) | 49 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 241 |
| Cutting Edge Material | HSSCo | Thread Size | M12 × 1.75 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.80000
Package Width
.70000
Package Height
.65000
Package Weight
.0950
