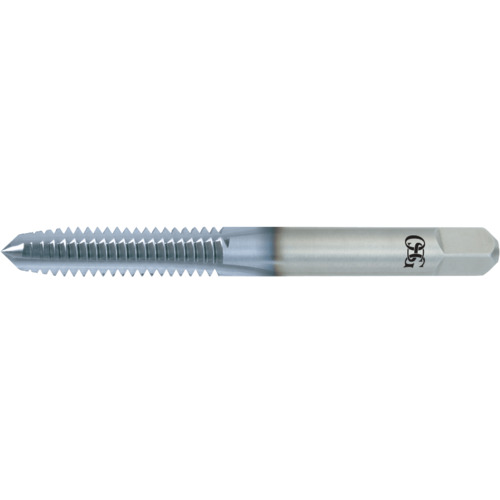

M10x1.5 4Fl D6 HSS Straight Flute Plug Tap-Steam Oxide
Straight Flute Tap; M10 × 1.5 mm ; 2-15/16″ OAL ; 4 FL ; HSS ; Black Oxide ; D6 ; Series 141
| Thread Diameter Size (TDZ) | M10 | Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 4P-4.5P |
| Thread Standard | Metric | Coating | Black Oxide |
| Overall Length (OAL) | 2-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | End Shape | Chamfer |
| Usable Length (LU) | 35 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 141 |
| Thread Tolerance Class (TCTR) | D6 | Thread Size | M10 × 1.5 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.55000
Package Height
.55000
Package Weight
0.075
