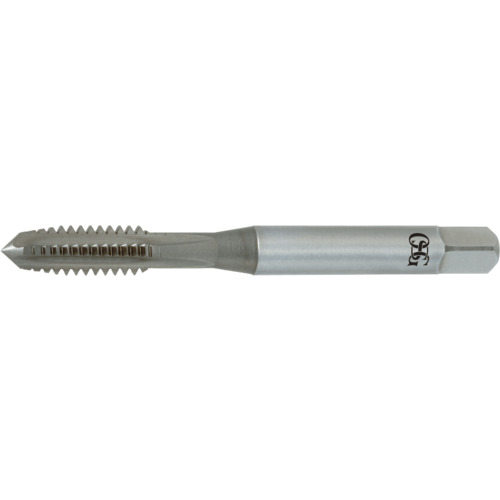

8-32 4Fl HSS-CO Straight Flute Plug Tap-Nitride
Straight Flute Tap; #8 - 32 ; 2-1/8″ OAL ; 4 FL ; HSSCo ; Nitride ; 2B ; Series 114
| Thread Diameter Size (TDZ) | #8 | Chamfer | 4P-4.5P |
| Threads per Inch (TPI) | 32 | Coating | Nitride |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-1/8″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 3/4″ | Style | Plug |
| Usable Length (LU) | 0.751″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.167″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | 114 |
| Thread Tolerance Class (TCTR) | 2B | Thread Size | #8 - 32 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
.0150
