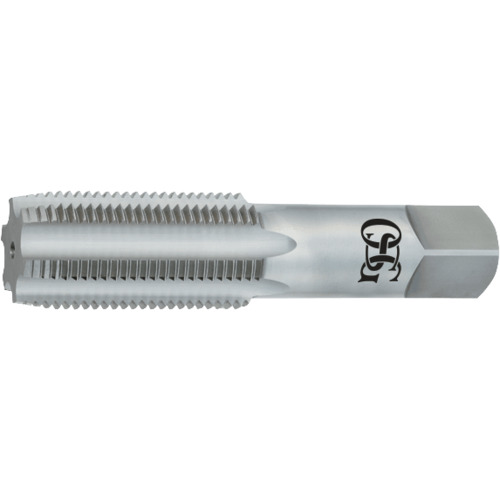

1-1/2-8 H5 6FL HSS PLUG
Straight Flute Tap; 1-1/2″ - 8 ; 6-3/8″ OAL ; 6 FL ; HSS ; Uncoated ; H5 ; Series 180
| Thread Diameter Size (TDZ) | 1-1/2″ | Chamfer | 4P-4.5P |
| Threads per Inch (TPI) | 8 | Coating | Uncoated |
| Overall Length (OAL) | 6-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3″ | End Shape | Chamfer |
| Usable Length (LU) | 3.381″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 1.232″ | Shank Type | Round |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 180 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 1-1/2″ - 8 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
6.55000
Package Width
2.00000
Package Height
1.95000
Package Weight
1.92
