1-1/4-8 H5 4FL HSS BOTT

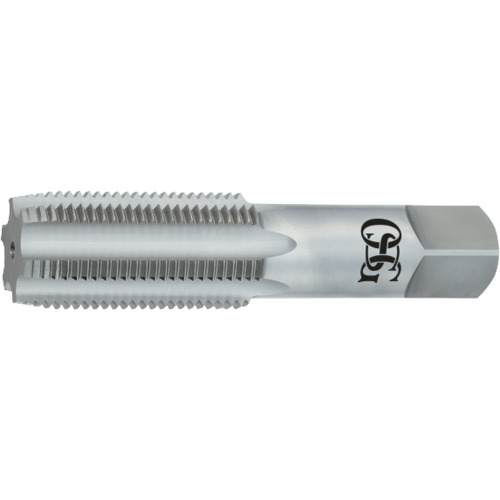

Straight Flute Tap; 1-1/4″ - 8 ; 5-3/4″ OAL ; 4 FL ; HSS ; Uncoated ; H5 ; Series 180
| Thread Diameter Size (TDZ) | 1-1/4″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 8 | Coating | Uncoated |
| Overall Length (OAL) | 5-3/4″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-9/16″ | End Shape | Chamfer |
| Usable Length (LU) | 3″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 1.02″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 180 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 1-1/4″ - 8 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
5.85000
Package Width
1.50000
Package Height
1.35000
Package Weight
1.105
