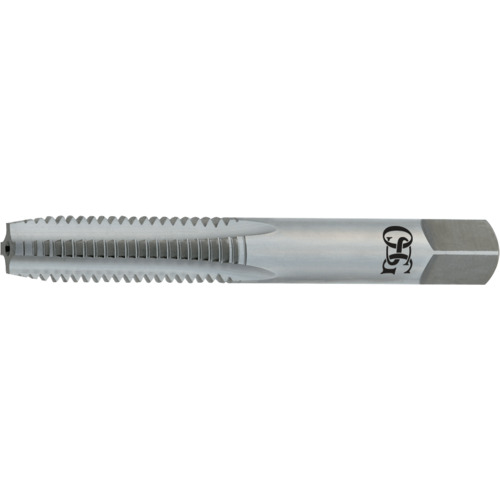

6-40 3Fl H2 HSS Left Hand Straight Flute Plug Tap-Bright
Straight Flute Tap; #6 - 40 ; 2″ OAL ; 3 FL ; HSS ; Uncoated ; H2 ; Series 101L
| Thread Diameter Size (TDZ) | #6 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 40 | Chamfer | 4P-4.5P |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.858″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Shank Type | Round |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Left Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS | Series/List # | 101L |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #6 - 40 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
