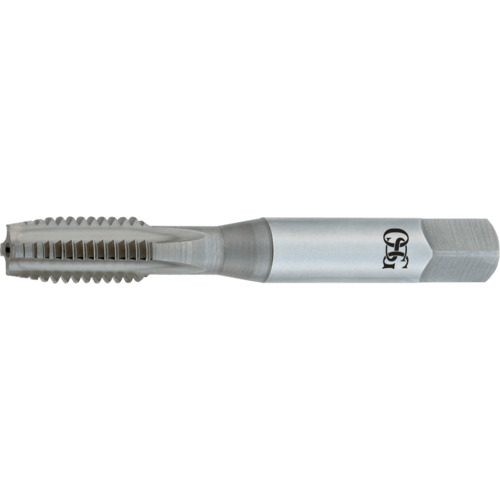

M3X0.5 D3 3FL PLUG NI ST
Straight Flute Tap; M3 × 0.5 mm ; 1-15/16″ OAL ; 3 FL ; HSSCo ; Nitride ; D3 ; Series 241
| Thread Diameter Size (TDZ) | M3 | Tool Type | Hand Tap |
| Thread Pitch (TP) | 0.5 mm | Chamfer | 4P-4.5P |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 1-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 5/8″ | End Shape | Chamfer |
| Usable Length (LU) | 17 mm | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm | Shank Type | Round |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 241 |
| Cutting Edge Material | HSSCo | Thread Size | M3 × 0.5 |
| Thread Tolerance Class (TCTR) | D3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.015
