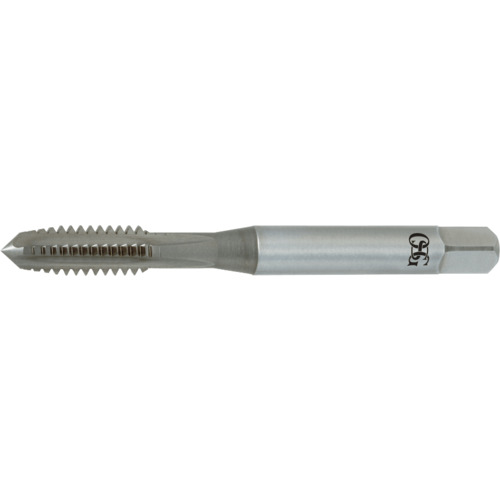

1/4-20 4Fl Oversize H7 HSS-CO Straight Flute Bottoming Tap-Nitride
Straight Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 4 FL ; HSSCo ; Nitride ; H7 ; Series 114
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 20 | Coating | Nitride |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-1/2″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1″ | Style | Bottoming |
| Usable Length (LU) | 0.996″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSSCo | Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H7 | Thread Size | 1/4″ - 20 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
