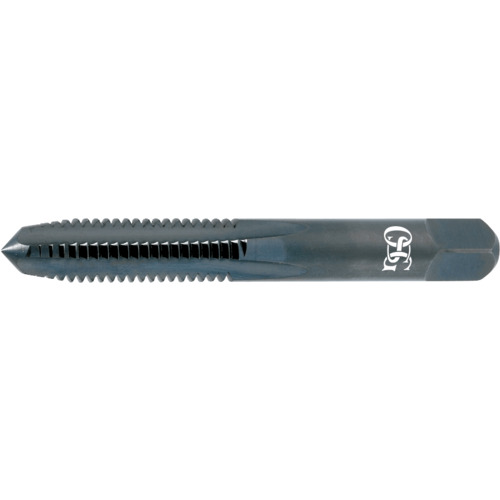

7/16-20 H5 4FL HSS Straight Flute Bottoming Tap-TiCN
Straight Flute Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 4 FL ; HSS ; TiCN ; H5 ; Series 101
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Chamfer | 1.5P-2P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 3-5/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-7/16″ | End Shape | Chamfer |
| Usable Length (LU) | 1.688″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101 |
| Cutting Edge Material | HSS | Thread Size | 7/16″ - 20 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.75000
Package Width
.70000
Package Height
.65000
Package Weight
.0800
