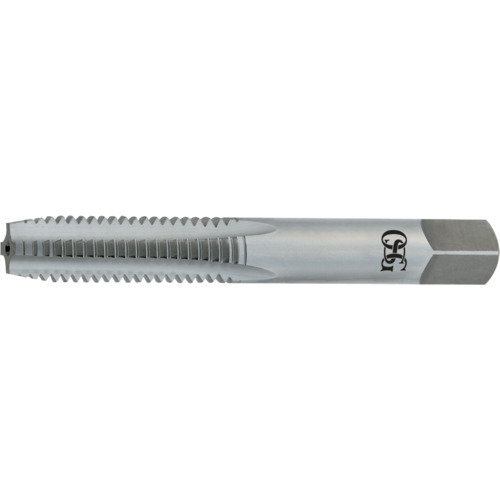

7/16-20 4FL H3 HSS-CO Straight Fl Tap - Bright
Straight Flute Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 4 FL ; HSSCo ; Uncoated ; H3 ; Series 305
| Thread Diameter Size (TDZ) | 7/16″ | Cutting Edge Material | HSSCo |
| Threads per Inch (TPI) | 20 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | NF | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 3-5/32″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 1-7/16″ | Flute Type | Straight |
| Usable Length (LU) | 1-7/16″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Series/List # | 305 |
| Flute Count (NOF) | 4 | Thread Size | 7/16″ - 20 |
| Applicable Material | | Steel | Hard Materials | |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
5.00000
Package Width
.75000
Package Height
.70000
Package Weight
0.095
