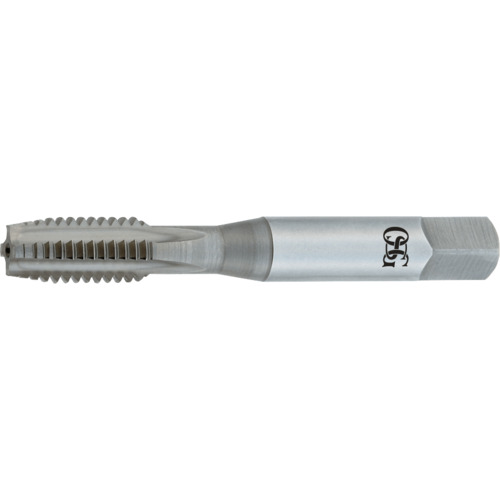

5/16-18 Dia. - H5-4 FL - HSSE - Nitride - Bottoming - Straight Flute Tap
Straight Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 4 FL ; HSSCo ; Nitride ; H5 ; Series 240
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 18 | Chamfer | 1.5P-2P |
| Thread Standard | NC | Coating | Nitride |
| Overall Length (OAL) | 2-23/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ | End Shape | Chamfer |
| Usable Length (LU) | 1.12″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.31″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 240 |
| Cutting Edge Material | HSSCo | Thread Size | 5/16″ - 18 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.55000
Package Height
.45000
Package Weight
.0500
