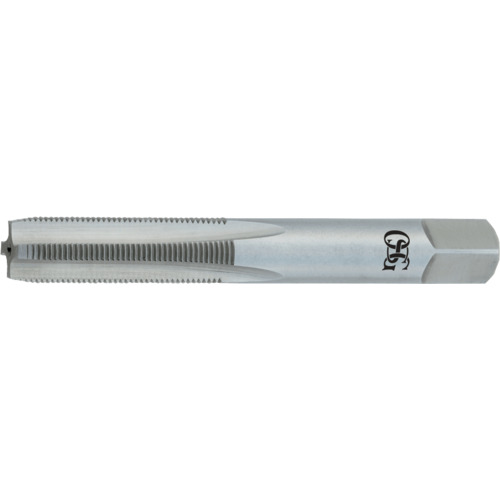

15/16-20 6Fl H3 HSS Straight Flute Bottoming Tap-Bright
Straight Flute Tap; 15/16″ - 20 ; 4-29/32″ OAL ; 6 FL ; HSS ; Uncoated ; H3 ; Series 101N
| Thread Diameter Size (TDZ) | 15/16″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 20 | Coating | Uncoated |
| Thread Standard | UNEF | Flute Type | Straight |
| Overall Length (OAL) | 4-29/32″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 2-7/32″ | Style | Bottoming |
| Usable Length (LU) | 2-1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.76″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101N |
| Cutting Edge Material | HSS | Thread Size | 15/16″ - 20 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
4.95000
Package Width
1.20000
Package Height
1.15000
Package Weight
0.58
