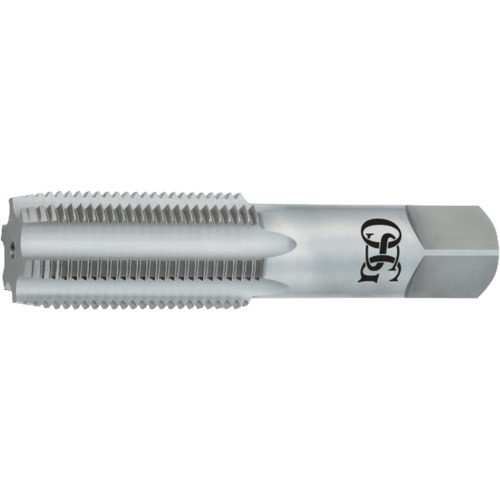

1-3/4-8 6Fl H6 HSS Straight Flute Plug Tap-Bright
Straight Flute Tap; 1-3/4″ - 8 ; 7″ OAL ; 6 FL ; HSS ; Uncoated ; H6 ; Series 180
| Thread Diameter Size (TDZ) | 1-3/4″ | Chamfer | 4P-4.5P |
| Threads per Inch (TPI) | 8 | Coating | Uncoated |
| Overall Length (OAL) | 7″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3-3/16″ | End Shape | Chamfer |
| Usable Length (LU) | 3.59″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 1.43″ | Shank Type | Round |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 180 |
| Thread Tolerance Class (TCTR) | H6 | Thread Size | 1-3/4″ - 8 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
7.20000
Package Width
2.00000
Package Height
2.00000
Package Weight
2.8650
