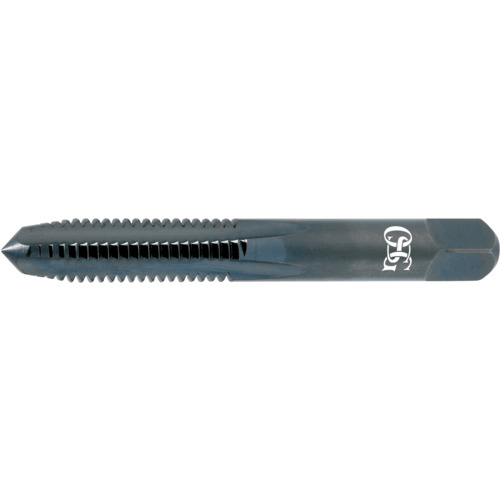

7/16-20 4Fl H5 HSS Straight Flute Bottoming Tap-Nitride & Steam Oxide
Straight Flute Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 4 FL ; HSS ; | Black Oxide | Nitride | ; H5 ; Series 101C
| Thread Diameter Size (TDZ) | 7/16″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 20 | Coating | | Black Oxide | Nitride | |
| Thread Standard | NF | Flute Type | Straight |
| Overall Length (OAL) | 3-5/32″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-7/16″ | Style | Bottoming |
| Usable Length (LU) | 1.689″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Cast Iron | | Series/List # | 101C |
| Cutting Edge Material | HSS | Thread Size | 7/16″ - 20 |
| Thread Tolerance Class (TCTR) | H5 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.80000
Package Width
.70000
Package Height
.65000
Package Weight
0.08
