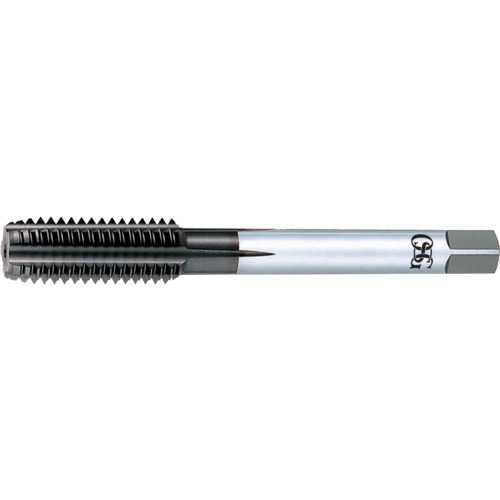

6-32 2B 4FL TiCN
Straight Flute Tap; #6 - 32 ; 56 mm OAL ; 4 FL ; Carbide ; TiCN ; 2B ; Series 311
| Thread Diameter Size (TDZ) | #6 | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 32 | Chamfer | 2.5P-3P |
| Thread Standard | NC | Coating | TiCN |
| Overall Length (OAL) | 56 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | Style | Modified Bottoming |
| Usable Length (LU) | 0.783″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 4 | Series/List # | 311 |
| Applicable Material | | Hard Materials | | Thread Size | #6 - 32 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.35000
Package Width
.45000
Package Height
.35000
Package Weight
0.015
