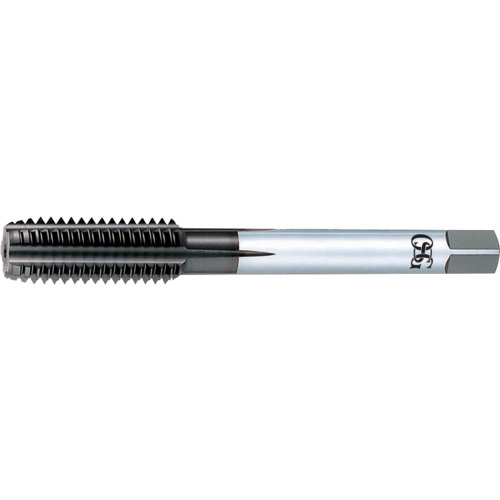

3/8-24 Dia.-2B-5 FL - Carbide - TiCN - Modified Bottoming - Straight Flute Tap
Straight Flute Tap; 3/8″ - 24 ; 100 mm OAL ; 5 FL ; Carbide ; TiCN ; 2B ; Series 311
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 24 | Chamfer | 2.5P-3P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 100 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | Style | Modified Bottoming |
| Usable Length (LU) | 1.378″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 311 |
| Applicable Material | | Hard Materials | | Thread Size | 3/8″ - 24 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.00000
Package Width
.65000
Package Height
.55000
Package Weight
.1950
