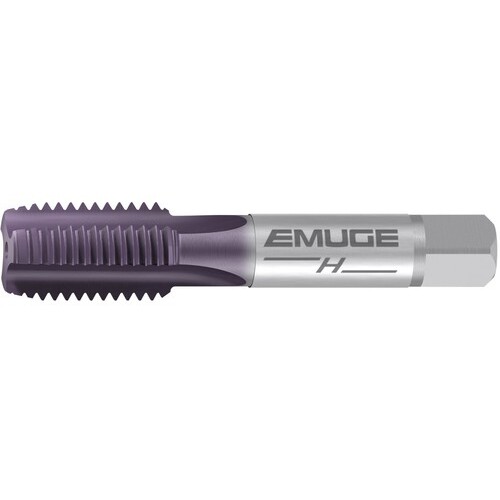

Straight Flute Tap; #6 -32 × 2″ OAL ; HSSE ; TiCN ; UNC ; 2BX
Straight Flute Tap; #6 - 32 ; 2″ OAL ; HSSE ; TiCN ; 2BX
| Thread Diameter Size (TDZ) | #6 | Tool Type | Rekord A-H |
| Threads per Inch (TPI) | 32 | Chamfer | 2P-3P |
| Thread Standard | UNC | Coating | TiCN |
| Overall Length (OAL) | 2″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.47″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE | Series/List # | AU109101 |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | #6 - 32 |
| Standard | ANSI |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
