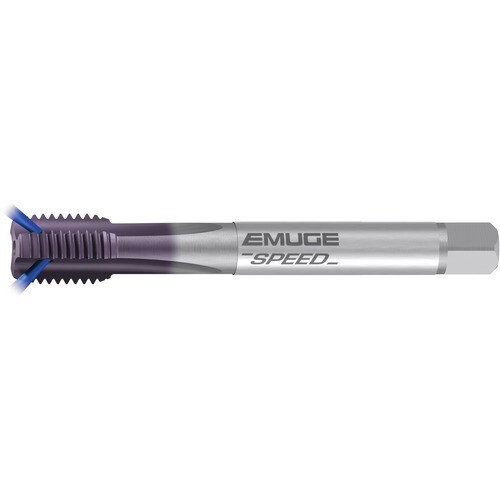

Straight Flute Tap; M14 x1.5 mm × 100 mm OAL ; HSSE ; TiCN ; Metric ; 6HX
Straight Flute Tap; M14 × 1.5 mm ; 100 mm OAL ; HSSE ; TiCN ; 6HX
| Thread Diameter Size (TDZ) | M14 | Tool Type | Rekord A-Speed |
| Thread Pitch (TP) | 1.5 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 100 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 11 mm | End Shape | Chamfer |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Series/List # | C3179401 |
| Standard | DIN | Thread Size | M14 × 1.5 |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs. • Longer tool life and more consistent thread quality. • Speed Taps reduce threading cycle times. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
