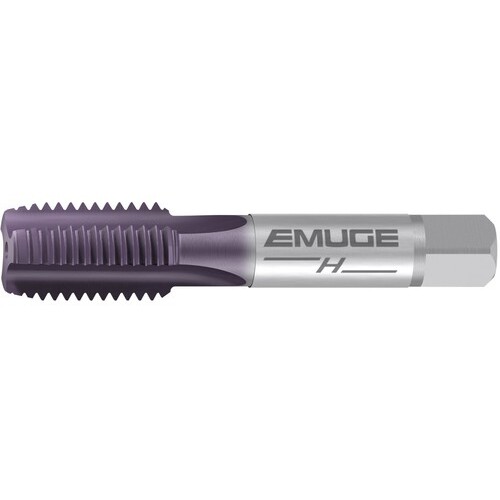

Straight Flute Tap; 9/16″ -18 × 3.59″ OAL ; HSSE ; TiCN ; UNF ; 2BX
Straight Flute Tap; 9/16″ - 18 ; 3.59″ OAL ; HSSE ; TiCN ; 2BX
| Thread Diameter Size (TDZ) | 9/16″ | Tool Type | Rekord A-H |
| Threads per Inch (TPI) | 18 | Chamfer | 2P-3P |
| Thread Standard | UNF | Coating | TiCN |
| Overall Length (OAL) | 3.59″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.87″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | AU109101 |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | 9/16″ - 18 |
| Standard | ANSI |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
