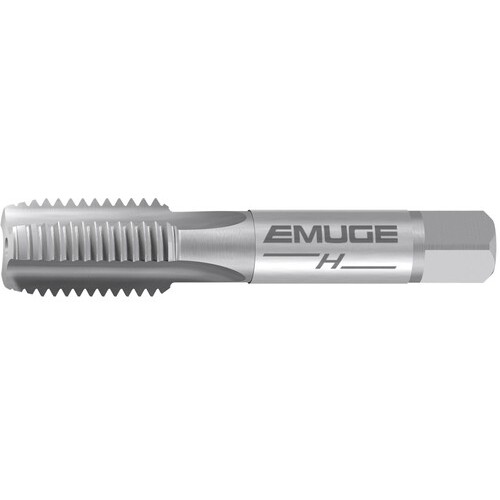

Straight Flute Tap; M10 x1.5 mm × 2.94″ OAL ; HSSE ; Nitride ; Metric ; 6H D4
Straight Flute Tap; M10 × 1.5 mm ; 2.94″ OAL ; HSSE ; 6H
| Thread Diameter Size (TDZ) | M10 | Standard | ANSI |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Rekord A-H |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2.94″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.87″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 2.937″ | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | Hard Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | AU110501 |
| Thread Tolerance Class (TCTR) | 6H | Thread Size | M10 × 1.5 |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
