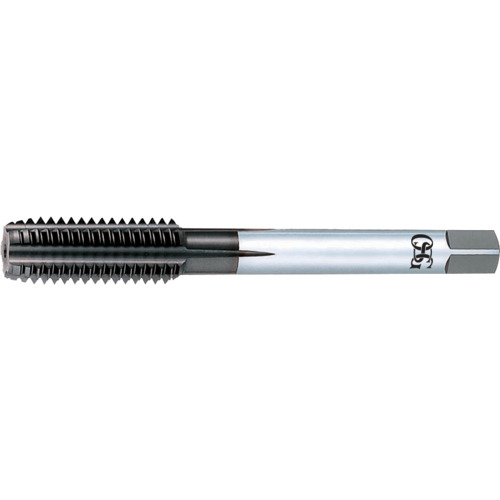

M16x2.0 OH4 6FL TiCN
Straight Flute Tap; M16 × 2 mm ; 95 mm OAL ; 6 FL ; Carbide ; TiCN ; OH4 ; Series 341
| Thread Diameter Size (TDZ) | M16 | Thread Tolerance Class (TCTR) | OH4 |
| Thread Pitch (TP) | 2 mm | Chamfer | 2.5P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 95 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 45 mm | Style | Modified Bottoming |
| Usable Length (LU) | 45 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Series/List # | 341 |
| Applicable Material | | Hard Materials | | Thread Size | M16 × 2 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.00000
Package Width
.85000
Package Height
.85000
Package Weight
0.375
