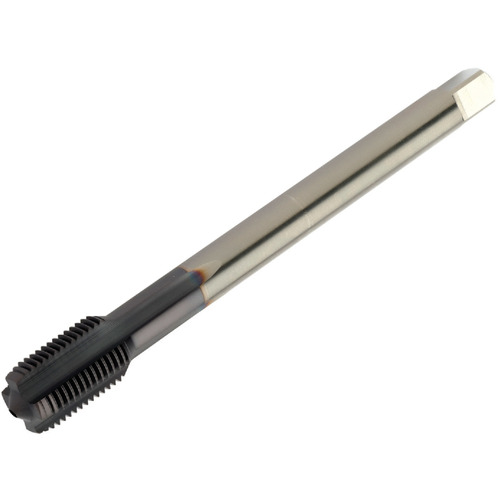

T100-KM105DA-M16 D210 COROTAP 100
Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; 5 FL ; Carbide ; TiAlN ; 6HX
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M16 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 2 mm | Thread Tolerance Class (TCTR) | 6HX |
| Thread Standard | Metric | Standard | DIN376 |
| Overall Length (OAL) | 110 mm | Coating | TiAlN |
| Thread Cutting Part Length (THL) | 25 mm | Flute Type | Straight |
| Usable Length (LU) | 68 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | | Thread Size | M16 × 2 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.1970
