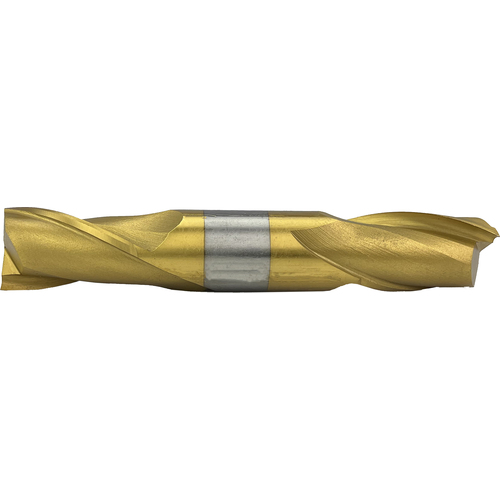

1″ Dia-5-7/8″ OAL-TiN HSS-Center Cut DE EM-2 FL
SQ End Mill; 1″ Dia. × 1-5/8″ LOC × 1″ Shank Dia. × 5-7/8″ OAL ; 2 FL ; HSS ; TiN
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 1-5/8″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Double-End|Center Cut |
| Overall Length (OAL) | 5-7/8″ | Length Group | Standard |
| Cutting Edge Material | HSS | Decimal Equivalent | 1″ |
| Coating | TiN |
Product Features
| Remarks | •TiN Coated 2-Flute Double End •High Speed Steel •TiN coating increases surface hardness and protects the tool from abrasive wear to increase tool life •Facilitates chip flow, resists galling and reduces heat-generated in the metal removal process •Allows for elevated feeds and speeds to increase your productivity | Country of Origin | China |
Shipping Info
Package Length
6.00000
Package Width
1.20000
Package Height
1.20000
Package Weight
0.95
