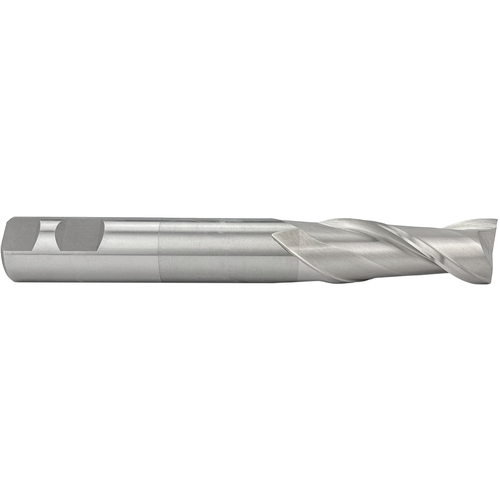

1″ Dia-7-1/4″ OAL-Uncoated M42-Extension SE EM 2 FL
SQ End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 7-1/4″ OAL ; 2 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 1″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 1″ | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Usable Length (LU) | 2-1/2″ |
| Overall Length (OAL) | 7-1/4″ | Length Group | Extension |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 1″ |
Product Features
| Remarks | •M-42 Cobalt 2-Flute Single End Extension Type •Center Cutting •For the tougher cutting assignments on hi-strength, hi-temp steels and exotic materials or extended production runs in conventional and N/C milling operations. | Country of Origin | China |
Shipping Info
Package Length
8.70000
Package Width
1.40000
Package Height
1.40000
Package Weight
1.45
