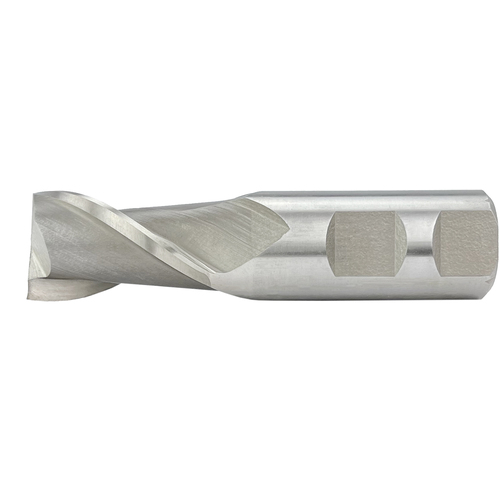

1″ Dia-4-1/8″ OAL-M42-Center Cut SE EM-2 FL
SQ End Mill; 1″ Dia. × 1-5/8″ LOC × 1″ Shank Dia. × 4-1/8″ OAL ; 2 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Usable Length (LU) | 1-5/8″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 4-1/8″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 1″ |
| Coating | Uncoated |
Product Features
| Remarks | •M-42 8% Cobalt 2-Flute Single End Mills Regular Length •Center Cutting •For the tougher cutting assignments on hi-strength, hi-temp steels and exotic materials or extended production runs in conventional and N/C milling operations. | Country of Origin | China |
Shipping Info
Package Length
4.25000
Package Width
1.32000
Package Height
1.32000
Package Weight
0.75
