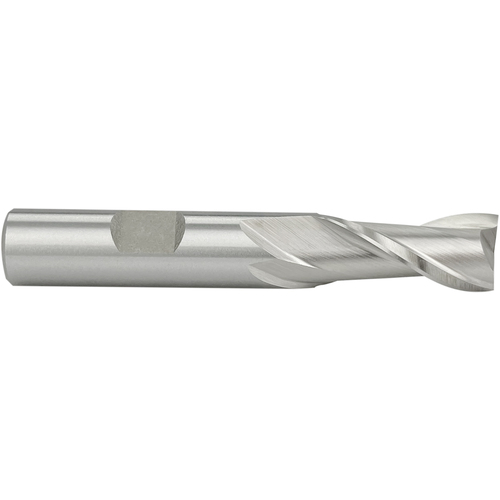

3/4″ Dia-3-9/16″OAL-M42-Center Cut SE EM-2 FL
SQ End Mill; 3/4″ Dia. × 1-5/16″ LOC × 3/4″ Shank Dia. × 3-9/16″ OAL ; 2 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 3/4″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1-5/16″ |
| Depth of Cut Maximum (APMX) | 1-5/16″ | Tool Type | Center Cut|Single-End |
| Overall Length (OAL) | 3-9/16″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.75″ |
| Coating | Uncoated |
Product Features
| Remarks | •M-42 8% Cobalt 2-Flute Single End Mills Regular Length •Center Cutting •For the tougher cutting assignments on hi-strength, hi-temp steels and exotic materials or extended production runs in conventional and N/C milling operations. | Country of Origin | China |
Shipping Info
Package Length
4.00000
Package Width
1.20000
Package Height
1.10000
Package Weight
0.35
