TPST M-3.5X0.6-G HENI
Straight Flute Tap; M3.5 × 0.6 mm ; 2.205″ OAL ; 3 FL ; HSS ; 6HX

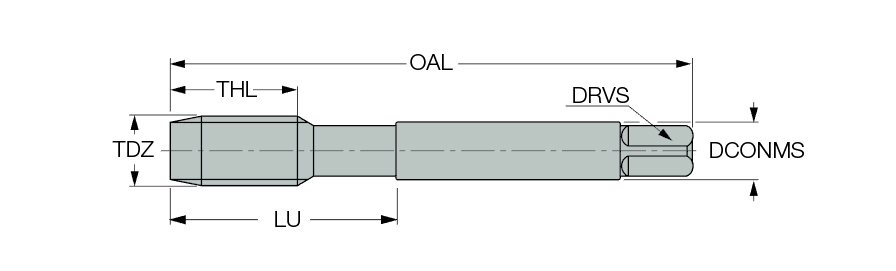

| Thread Diameter Size (TDZ) | M3.5 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.6 mm | Drive Size (DRVS) | 0.118″ |
| Thread Standard | THFT | | Flute Length | 78 mm |
| Overall Length (OAL) | 2.205″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.472″ | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 0.79″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.157″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | HENI |
| Flute Helix Angle (FHA) | CW|45 Degrees | Thread Size | M3.5 × 0.6 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Body Material | HSS |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | M60 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features

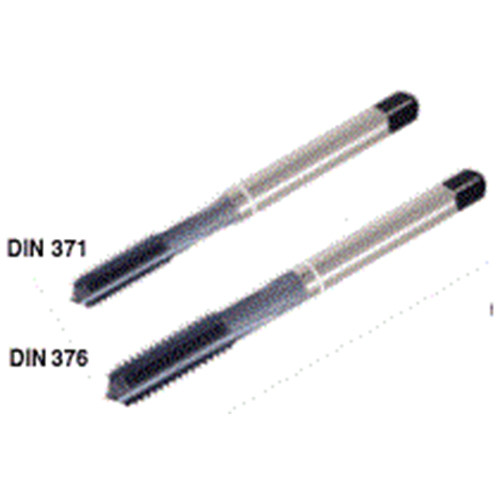

| Family Description | HSS straight flute machine taps - ISO metric coarse threads, according to DIN 13, for grey cast iron. | Country of Origin | S.Korea |
| Remarks | The material designation HE was recently changed to HENI. HENI and HE are identical products and therefore you may still encounter HE designated items. |
Shipping Info
Package Weight
0.013
