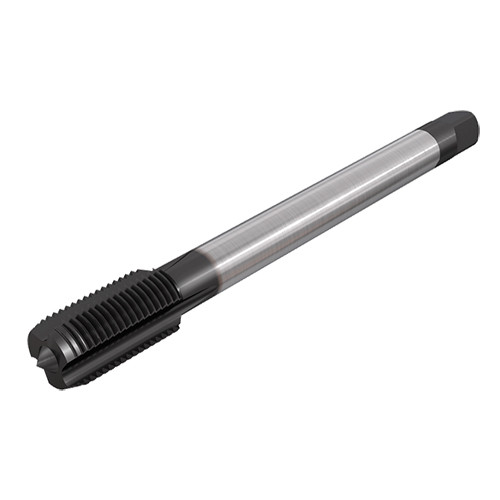

TPST MF-12X1.25-G HENI
Straight Flute Tap; M12 x1.25 mm × 3.937″ OAL ; 3 FL ; HSS ; THFT |

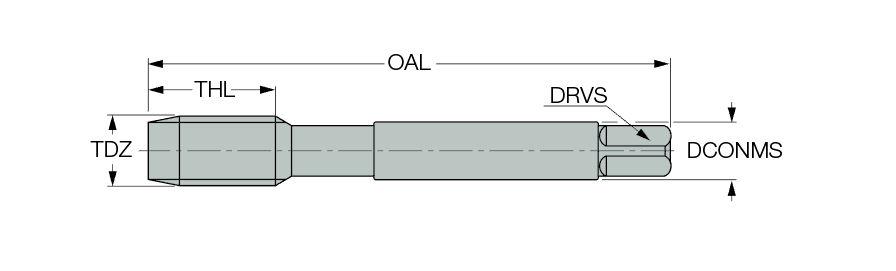

| Thread Diameter Size (TDZ) | M12 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 1.25 mm | Drive Size (DRVS) | 0.276″ |
| Thread Standard | THFT | | Flute Length | 78 mm |
| Overall Length (OAL) | 3.937″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.354″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | CW|45 Degrees | Grade | HENI |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Thread Size | M12 × 1.25 |
| Cutting Edge Material | HSS | Body Material | HSS |
| Thread Tolerance Class (TCTR) | 6HX | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | HSS straight flute machine taps - ISO metric fine threads, according to DIN 13, for grey cast iron. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.174
