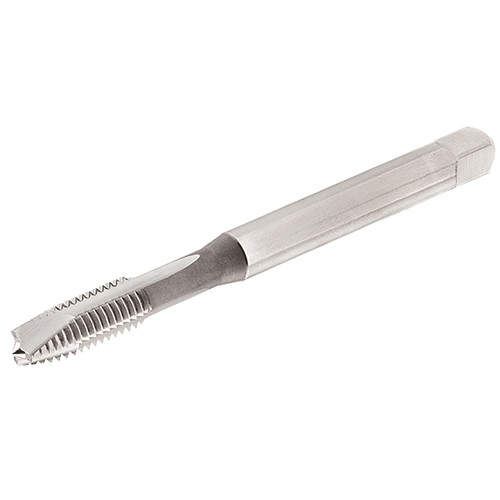

TPG UNF-#5-44-M HE
Straight Flute Tap; #5 x0.568 mm -44 Threads/" × 2.205″ OAL ; 3 FL ; HSS ; Uncoated ; THFT |

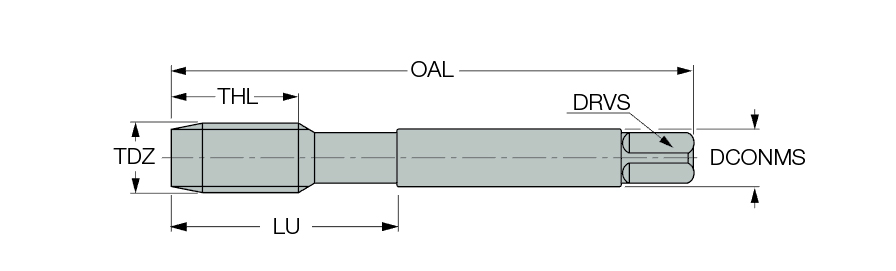

| Thread Diameter Size (TDZ) | #5 | Tool Type | Machine Through Hole Taps |
| Thread Pitch (TP) | 0.568 mm | Coating | Uncoated |
| Threads per Inch (TPI) | 44 Threads/" | Drive Size (DRVS) | 0.106″ |
| Thread Standard | THFT | | Flute Length | 78 mm |
| Overall Length (OAL) | 2.205″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 0.433″ | Style | DIN 371 |
| Usable Length (LU) | 0.71″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.138″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | CW|45 Degrees | Grade | HE |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Thread Size | 5 - 44 |
| Cutting Edge Material | HSS | Body Material | HSS |
| Thread Tolerance Class (TCTR) | 6HX | Thread Form Type (THFT) | UN60 |
| Standard | DIN 371 |
Product Features
| Family Description | HSS gun point machine taps unified fine threads for a wide range of materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.013
