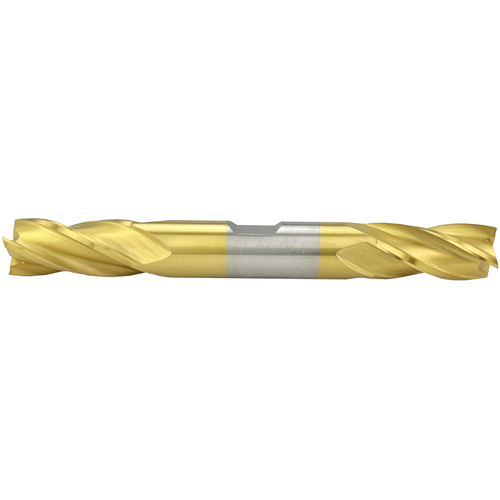

1/8X3/8 TIN 4FL CC DE EM
SQ End Mill; 1/8″ Dia. × 3/8″ LOC × 3/8″ Shank Dia. × 3-1/16″ OAL ; 4 FL ; 3/8″ LBS ; HSS ; TiN
| Cutting Diameter (DC) | 1/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Double-End|Center Cut |
| Overall Length (OAL) | 3-1/16″ | Length Group | Standard |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.125″ |
| Coating | TiN |
Product Features
| Remarks | •TiN Coated 4-Flute Double End •High Speed Steel •TiN coating increases surface hardness and protects the tool from abrasive wear to increase tool life •Facilitates chip flow, resists galling and reduces heat-generated in the metal removal process •Allows for elevated feeds and speeds to increase your productivity | Country of Origin | China |
Shipping Info
Package Length
3.10000
Package Width
.70000
Package Weight
0.05
