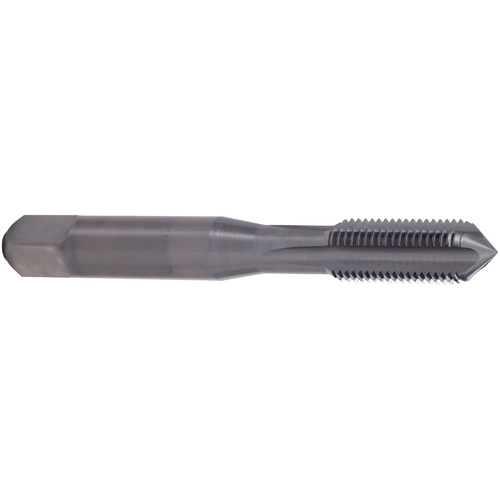

Straight Flute Tap; 3/8″ - 16 ; 2.94″ OAL ; 4 FL ; Carbide ; Bright ; 2B ; Series T0C01
| Thread Diameter Size (TDZ) | 3/8″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 16 | Coating | Uncoated |
| Thread Standard | UNC | Tapping Prehole Diameter (Pre-hole) | 0.3182″ |
| Overall Length (OAL) | 2.94″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 0.748″ | End Shape | Bottoming |
| Usable Length (LU) | 1.252″ | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Applicable Material | | Cast Iron | | Length Group | 2xD |
| Cutting Edge Material | Carbide | Square Size | 0.286″ |
| Thread Tolerance Class (TCTR) | 2B | Measurement Type | Inch |
| Standard | 302A | Series/List # | T0C01 |
| Tool Type | Cast Iron Tap | Thread Size | 3/8″ - 16 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
0.625
Package Width
3.875
Package Height
0.75
Package Weight
0.1318
