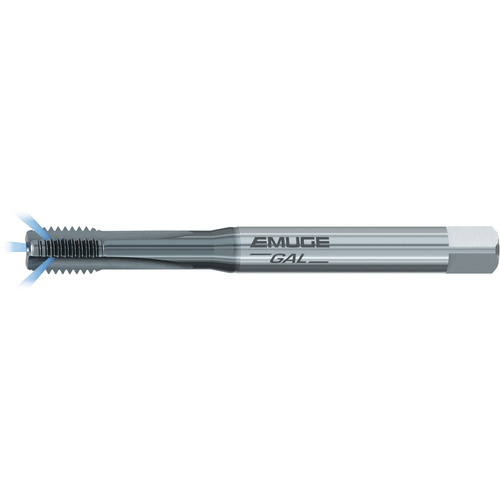

Straight Flute Tap; M6 x1 mm × 80 mm OAL ; HSSE ; TiCN ; Metric ; 6HX ; Series 1099501
Straight Flute Tap; M6 × 1 mm ; 80 mm OAL ; HSSE ; TiCN ; 6HX ; Series 1099501
| Thread Diameter Size (TDZ) | M6 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Tool Type | Rekord A-GAL/E |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 80 mm | Coating | TiCN |
| Usable Length (LU) | 30 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSE | Series/List # | B1099501 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M6 × 1 |
Product Features
| Remarks | • Rekord A-GAL/E is a straight flute design best suited for short chipping cast aluminum material grades. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
