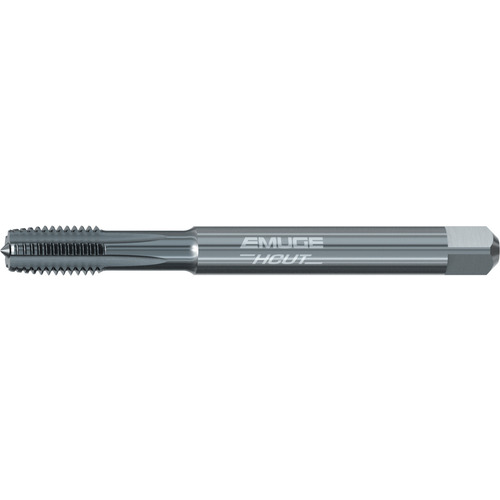

Straight Flute Tap; M16 x2 mm × 110 mm OAL ; 6 FL ; Carbide ; TiCN ; Metric ; 6HX ; Series 016K101
| Thread Diameter Size (TDZ) | M16 | Standard | DIN |
| Thread Pitch (TP) | 2 mm | Tool Type | Rekord A-HCUT |
| Thread Standard | Metric | Chamfer | 3.5P-5P |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Usable Length (LU) | 44 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Application | Blind Hole | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Hard Materials | | Series/List # | 016K101 |
| Cutting Edge Material | Carbide | Thread Size | M16 × 2 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-HCUT is a straight flute carbide tap design best suited for short chipping, hardened steel in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
