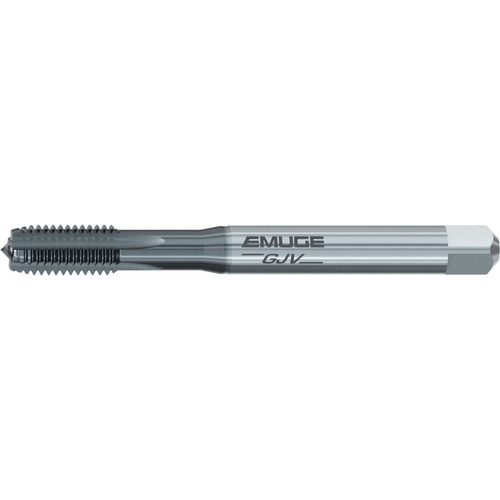

Straight Flute Tap; M10 x1.5 mm × 100 mm OAL ; 4 FL ; HSSE-PM ; TiCN ; Metric ; 6HX ; Series 010R501
Straight Flute Tap; M10 × 1.5 mm ; 100 mm OAL ; 4 FL ; HSSE-PM ; TiCN ; 6HX ; Series 010R501
| Thread Diameter Size (TDZ) | M10 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Rekord A-GJV |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Usable Length (LU) | 39 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Application | Blind Hole | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Hard Materials | | Series/List # | B010R501 |
| Cutting Edge Material | HSSE-PM | Thread Size | M10 × 1.5 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material. • Longer tool life and more consistent thread quality. • This design is suitable for through & blind hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
