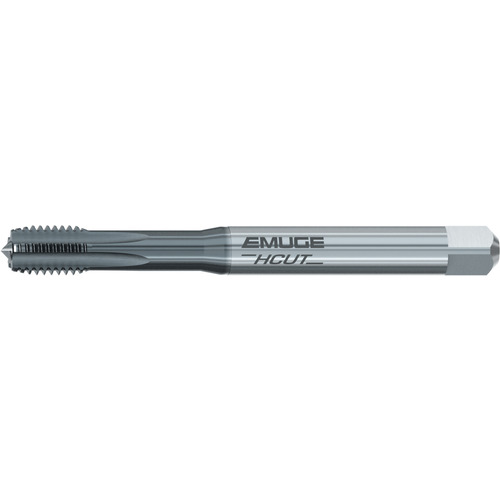

Straight Flute Tap; M8 x1.25 mm × 90 mm OAL ; 5 FL ; HSSE-PM ; TiCN ; Metric ; D1 ; Series 010J901
Straight Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 5 FL ; HSSE-PM ; TiCN ; 6HX ; Series 010J901
| Thread Diameter Size (TDZ) | M8 | Standard | DIN |
| Thread Pitch (TP) | 1.25 mm | Tool Type | Rekord A-HCUT |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm | Coating | TiCN |
| Usable Length (LU) | 35 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 5 | Coolant Supply Property (CSP) | External |
| Application | Blind Hole | Measurement Type | Metric |
| Applicable Material | | Hard Materials | | Series/List # | B010J901 |
| Cutting Edge Material | HSSE-PM | Thread Size | M8 × 1.25 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-HCUT straight flute tap for Whitworth pipe thread. For applications in hardened steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
