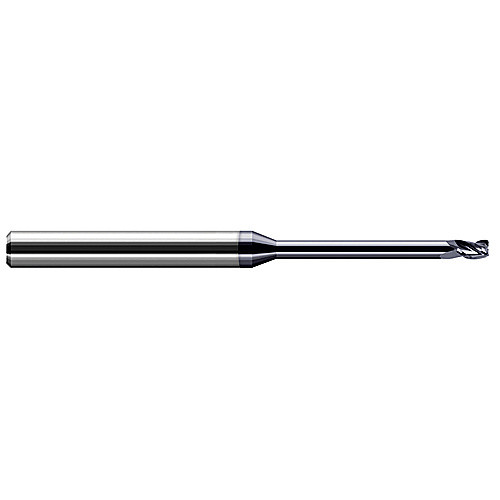

Miniature End Mills - Long Reach, Stub Flute - 0.0250″ Cutter Diameter × 0.0050″ Radius × 0.0370″ Length of Cut × 0.2500″ (1/4″) Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated
SQ End Mill; 0.025″ Dia. × 0.037″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 0.005″ RE ; 3 FL ; 1/4″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.025″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/4″ |
| Depth of Cut Maximum (APMX) | 0.037″ | Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 10D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.025″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
