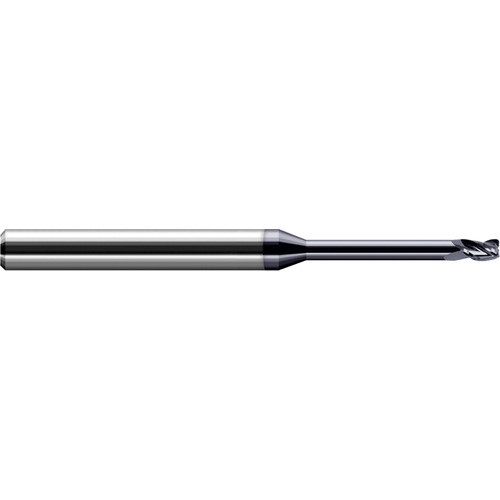

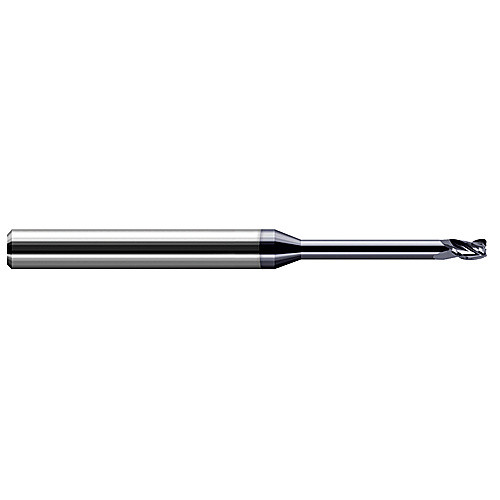

Miniature End Mills - Long Reach, Stub Flute - 0.0390″ Cutter Diameter × 0.0100″ Radius × 0.0590″ Length of Cut × 0.3250″ Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated
Corner Radius End Mill; 0.039″ Dia. × 0.059″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 0.039″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.325″ |
| Depth of Cut Maximum (APMX) | 0.059″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 8D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.039″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.016
