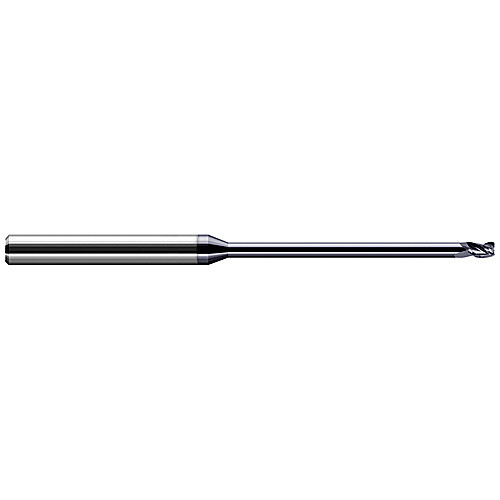

Miniature End Mills - Long Reach, Stub Flute - 0.0470″ (3/64″) Cutter Diameter × 0.0100″ Radius × 0.0700″ Length of Cut × 0.7100″ Reach Carbide Corner Radius End Mill, 3 Flutes, AlTiN Coated
SQ End Mill; 3/64″ Dia. × 0.07″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 0.01″ RE ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/64″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 0.71″ |
| Depth of Cut Maximum (APMX) | 0.07″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 15D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.046875″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
