M8 1 mm Pitch, 3 -Flute, D5 List 2059 Straight Flute Tap Series/List #2059

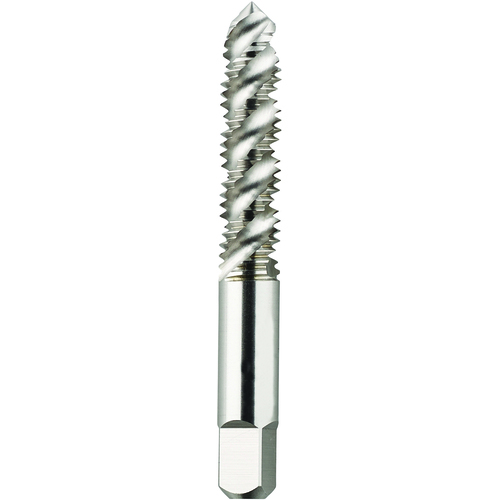

Spiral Flute Tap; M8 × 1 mm ; 2-23/32″ OAL ; 3 FL ; HSS ; Uncoated ; D5
| Thread Diameter Size (TDZ) | M8 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Chamfer | Plug |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 2-23/32″ | Cutting Direction (HAND) | Right Hand |
| Thread Cutting Part Length (THL) | 1-1/8″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 1-1/8″ | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Series/List # | 2059 |
| Flute Count (NOF) | 3 | Drive Size (DRVS) | 0.238″ |
| Flute Helix Angle (FHA) | 52 Degrees | Thread Size | M8 × 1 mm |
| Cutting Edge Material | HSS |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
