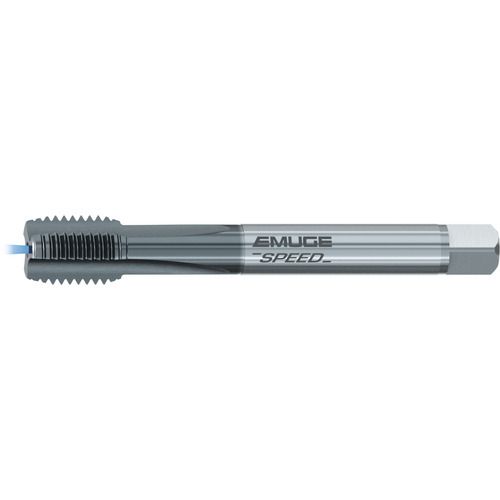

Straight Flute Tap; 5/8″ -18 × 4.331″ OAL ; 4 FL ; HSSE ; TiCN ; UNF ; 2BX ; Series W159401
Straight Flute Tap; 5/8″ - 18 ; 4.331″ OAL ; 4 FL ; HSSE ; TiCN ; 2BX ; Series W159401

| Thread Diameter Size (TDZ) | 5/8″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 18 | Tool Type | Rekord A-Speed |
| Thread Standard | UNF | Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Flute Type | Straight |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | CW159401 |
| Thread Tolerance Class (TCTR) | 2BX | Thread Size | 5/8″ - 18 |
Product Features
| Remarks | • Speed taps are able to operate at higher cutting speeds than conventional designs.
• Longer tool life and more consistent thread quality.
• Speed Taps reduce threading cycle times. | Country of Origin | Germany |
Shipping Info
Package Weight
0.154
