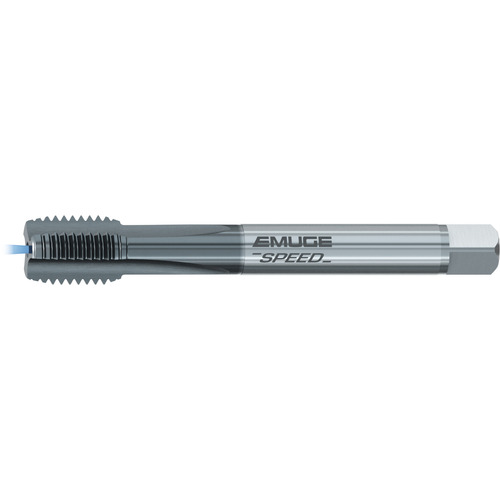

Straight Flute Tap; M16 x2 mm × 100 mm OAL ; HSSE ; TiCN ; Metric ; 6HX

‹ ›

Straight Flute Tap; M16 x2 mm × 100 mm OAL ; HSSE ; TiCN ; Metric ; 6HX

Straight Flute Tap; M16 × 2 mm ; 100 mm OAL ; HSSE ; TiCN ; 6HX

Item # ER45C3169401011

Brand: Emuge-Franken

MFG #: C3169401.0116

Legacy Part #: ER45C3169401011

TradeName: EMUGE - SPEED

Quantity Available

Thread Diameter Size (TDZ)

M16

Standard

DIN

Thread Pitch (TP)

2 mm

Tool Type

Rekord A/E-Speed

Thread Standard

Metric

Chamfer

‎1.5P-2P

Overall Length (OAL)

100 mm

Coating

TiCN

Connection Diameter Machine Side (DCONMS)

12 mm

Flute Type

Straight

Application

Blind Hole

Cutting Direction (HAND)

Right Hand

Applicable Material

| Cast Iron |

Coolant Supply Property (CSP)

Coolant Thru

Cutting Edge Material

HSSE

Series/List #

C3169401

Thread Tolerance Class (TCTR)

6HX

Thread Size

M16 × 2

Product Features

Remarks

• Speed taps are able to operate at higher cutting speeds than conventional designs. • Longer tool life and more consistent thread quality. • Speed Taps reduce threading cycle times.

Country of Origin

Germany

Shipping Info

Package Weight

0.99
