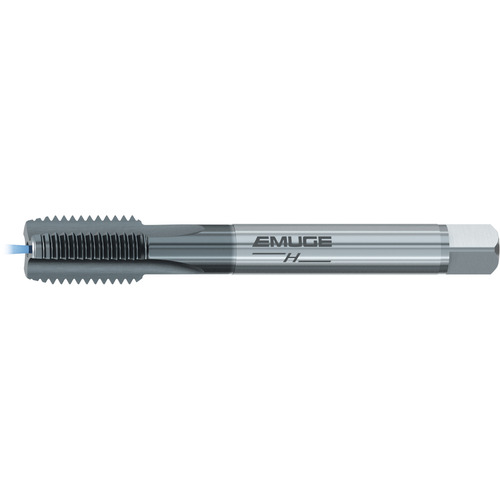

Straight Flute Tap; 1/2″ -13 × 4.331″ OAL ; HSSE ; TiCN ; UNC ; 2BX
Straight Flute Tap; 1/2″ - 13 ; 4.331″ OAL ; HSSE ; TiCN ; 2BX
| Thread Diameter Size (TDZ) | 1/2″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 13 | Tool Type | Rekord A-H |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 4.331″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | Hard Materials | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Series/List # | CU959101 |
| Thread Tolerance Class (TCTR) | 2BX |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels). • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.112
