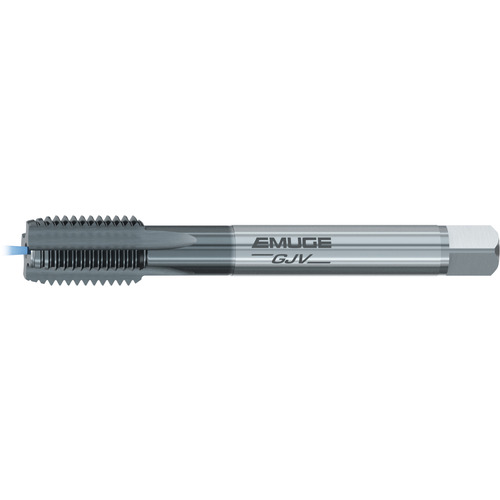

Straight Flute Tap; M20 x2.5 mm × 140 mm OAL ; HSSE-PM ; TiCN ; Metric ; 6HX

‹ ›

Straight Flute Tap; M20 x2.5 mm × 140 mm OAL ; HSSE-PM ; TiCN ; Metric ; 6HX

Straight Flute Tap; M20 × 2.5 mm ; 140 mm OAL ; HSSE-PM ; TiCN ; 6HX

Item # ER45196R5010120

Brand: Emuge-Franken

MFG #: C196R501.0120

Legacy Part #: ER45196R5010120

TradeName: EMUGE - GJV

Quantity Available

Thread Diameter Size (TDZ)

M20

Standard

DIN

Thread Pitch (TP)

2.5 mm

Tool Type

Rekord A-GJV

Thread Standard

Metric

Chamfer

‎1.5P-2P

Overall Length (OAL)

140 mm

Coating

TiCN

Connection Diameter Machine Side (DCONMS)

16 mm

Flute Type

Straight

Application

Blind Hole

Cutting Direction (HAND)

Right Hand

Applicable Material

| Cast Iron | Hard Materials |

Coolant Supply Property (CSP)

Coolant Thru

Cutting Edge Material

HSSE-PM

Series/List #

C196R501

Thread Tolerance Class (TCTR)

6HX

Product Features

Remarks

• Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material. • Longer tool life and more consistent thread quality. • This design is suitable for through & blind hole applications.

Country of Origin

Germany

Shipping Info

Package Weight

0.323
