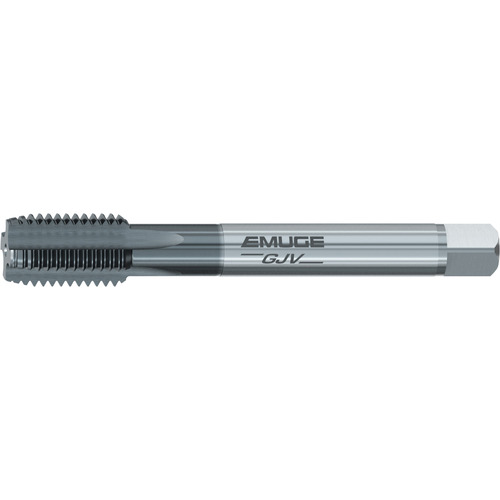

Straight Flute Tap; M16 x2 mm × 110 mm OAL ; HSSE-PM ; TiCN ; Metric ; 6HX
Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; HSSE-PM ; TiCN ; 6HX
| Thread Diameter Size (TDZ) | M16 | Standard | DIN |
| Thread Pitch (TP) | 2 mm | Tool Type | Rekord A-GJV |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | Hard Materials | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Series/List # | C010R501 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material. • Longer tool life and more consistent thread quality. • This design is suitable for through & blind hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.055
