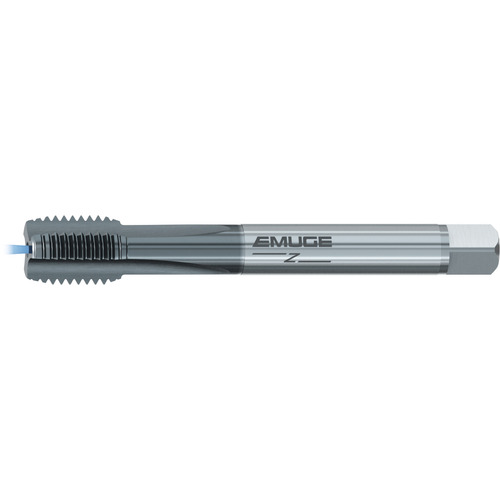

Straight Flute Tap; M16 x1.5 mm × 100 mm OAL ; HSSE ; TiCN ; Metric ; 6HX
Straight Flute Tap; M16 × 1.5 mm ; 100 mm OAL ; HSSE ; TiCN ; 6HX
| Thread Diameter Size (TDZ) | M16 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Rekord A-Z |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Stainless Steel | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Series/List # | C1969401 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M16 × 1.5 |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.162
