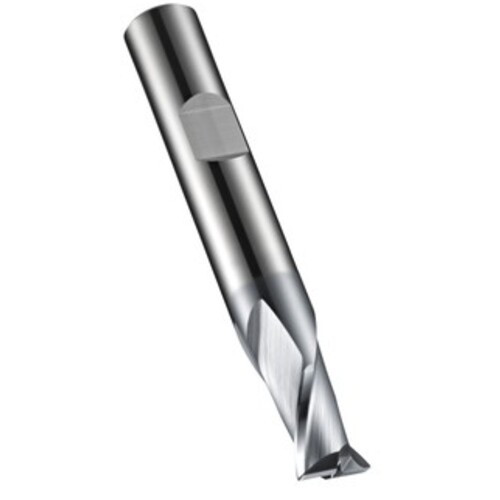

14.00 MM Dormer HM ALCRONA DIN 6535 HB Shank Slot Drill N DIN 6527 K E-code # S802HB14.0
SQ End Mill; 14 mm Dia. × 14 mm LOC × 14 mm Shank Dia. × 75 mm OAL ; 2 FL ; Carbide ; AlCrN ; Series S716
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Application | Shank Cutter Slotting |
| Depth of Cut Maximum (APMX) | 14 mm | Head Length (LH) | 14 mm |
| Overall Length (OAL) | 75 mm | Length Group | Extra Short |
| Cutting Edge Material | Carbide | Shank Standard | DIN 6527 K |
| Coating | AlCrN | Body Material | HM Material |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.5512″ |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | S716 |
| Shank Type | Weldon |
Product Features
| Family Description | E-code # S802HB14.0 | Country of Origin | Italy |
Shipping Info
Package Weight
5.285
