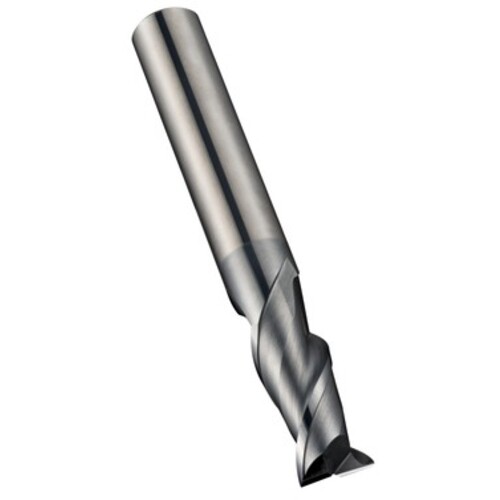

2.50 MM Dormer HM AlCrN DIN 6535 HA Shank End Mill N DORMER E-code # S7102.5
SQ End Mill; 2.5 mm Dia. × 6.5 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 2 FL ; Carbide ; AlCrN ; Series C908
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2.5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Applicable Material | | Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 6.5 mm | Application | Shank Cutter Slotting |
| Overall Length (OAL) | 40 mm | Head Length (LH) | 6.5 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 2 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | C908 |
Product Features
| Family Description | E-code # S7102.5 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.235
