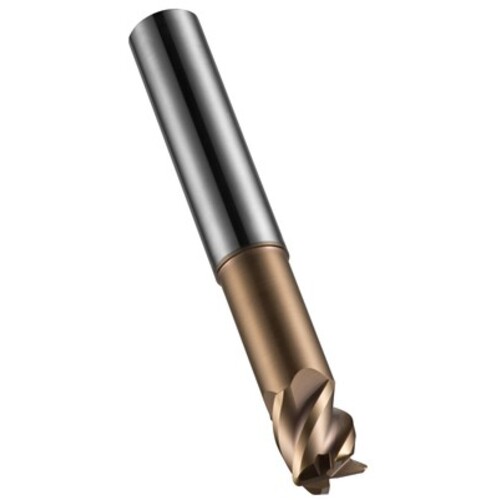

5.00 MM 0.5 MM Dormer HM TiSiN DIN 6535 HA Shank Corner Radius End Mill N DORMER E-code # S5215.0XR0.5
SQ End Mill; 5 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 60 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; TiSiN ; Series S765
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | Shank Cutter Corner Radius |
| Depth of Cut Maximum (APMX) | 6 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 60 mm | Head Length (LH) | 6 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 18 mm |
| Coating | TiSiN | Length Group | Extra Short |
| Flute Count (NOF) | 4 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.1969″ |
| End Shape | Corner Radius | Series/List # | S765 |
| Usable Length (LU) | 18 mm |
Product Features
| Family Description | E-code # S5215.0XR0.5 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.931
